Mattress Sewing Machines

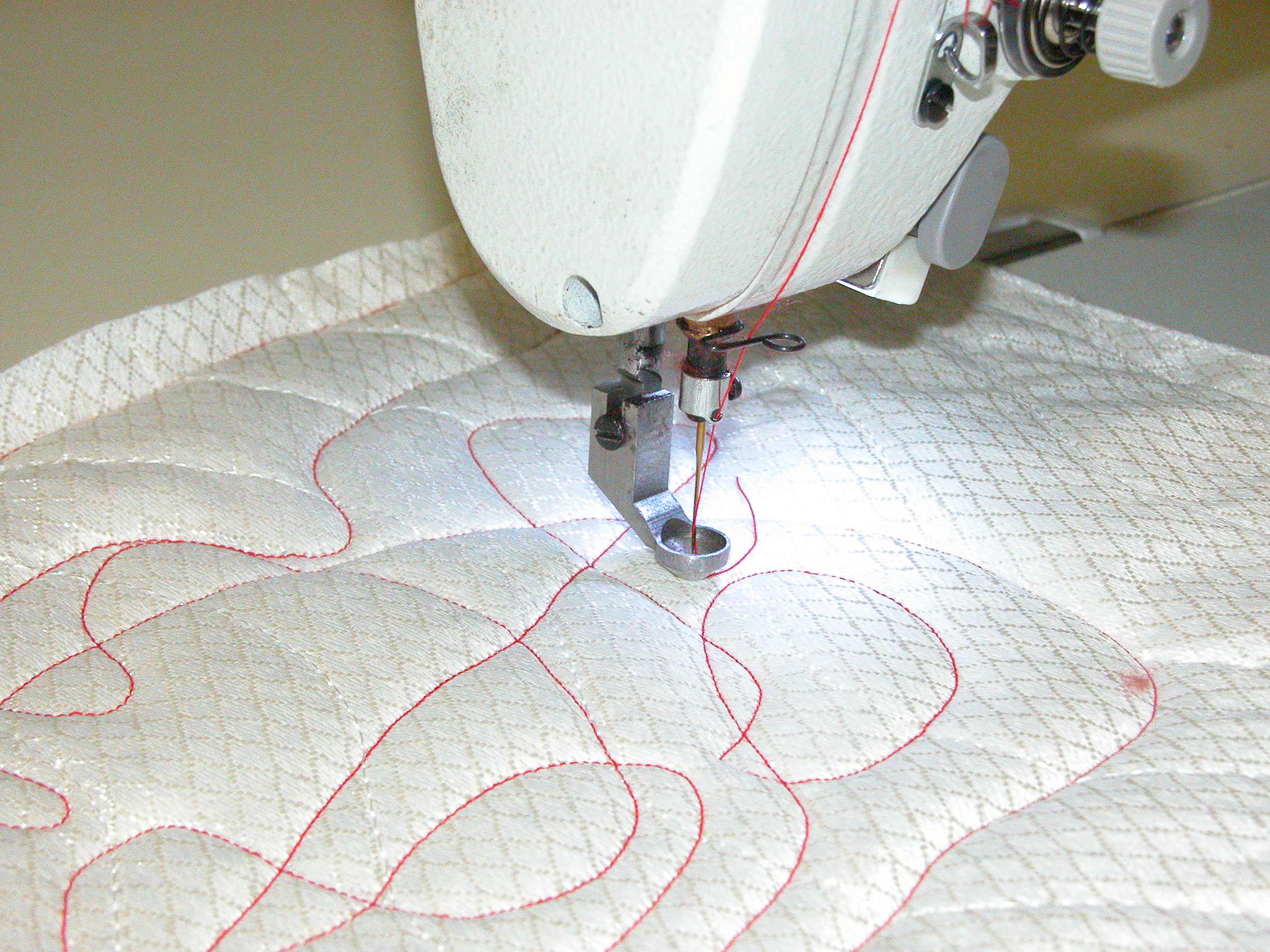

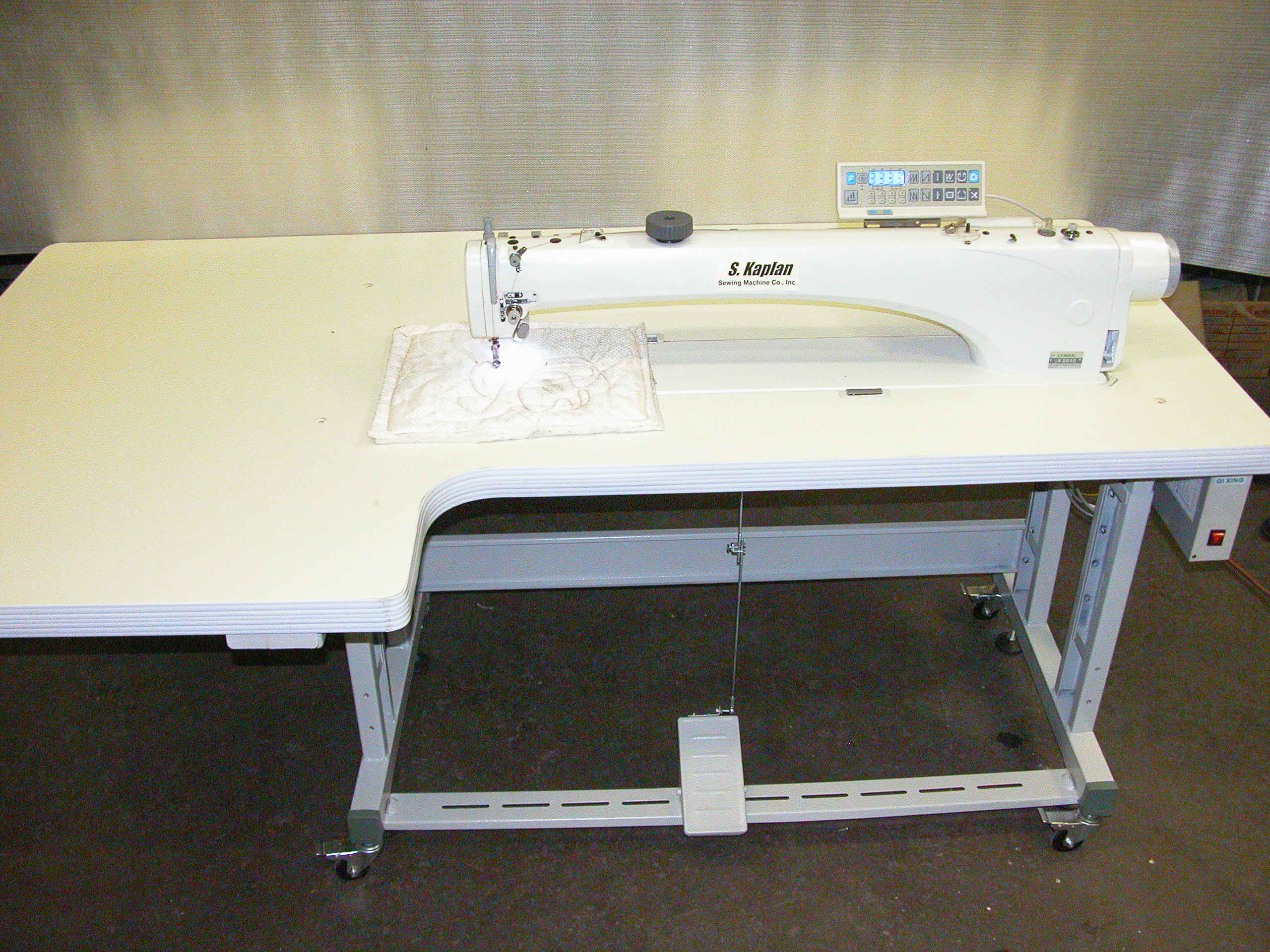

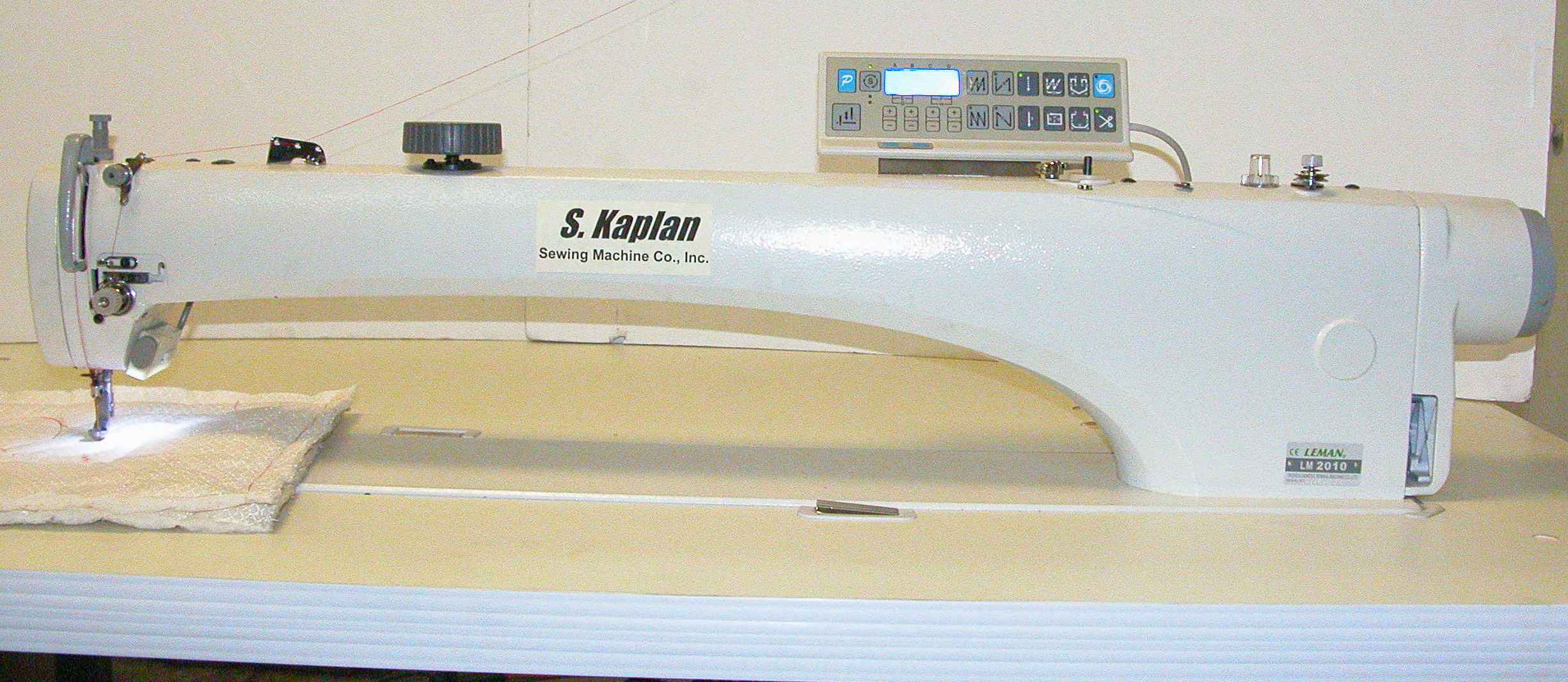

SK Model QR-30 Long Arm Quilt Repair
High speed single needle lockstitch machine with jumping foot. 30" arm length for ease in handling large panels. Built in direct drive electronic needle positioning servo motor. Automatic thread trimming and presser foot lift. Oversize (47" x 82") table for ease in handling large panels.

SK LAZZ-30 Zig-Zag Label Sewer
Single needle lockstitch zig-zag sewing machine with reverse feed. 30" Long arm. Specially designed presser foot, feed dog and needle plate. Stitch adjustable up to 3/8" wide. Sews panels which will compress to 5/8". Horizontal axis transverse rotary hook.

Union Special 56300 Set-up for Half Capping Sewing Machine
High speed single needle chainstitch machine. Binds mattress panel to border before tape edge operation. Available with binder, fittings and swing brackets. Interchangeable binder sizes 5/8", 7/8", 1", 1 1/4" & 1 1/2".

Singer 300W for Half Capping & Panel Binding
High speed single needle, chainstitch machine. Binds mattress panel to border tape edge operation. Available with binder, fittings and swing brackets. Interchangeable binder, sizes 5/8", 7/8", 1", 1 1/4" & 1 1/2". Available with walking foot for thickest panels.
SK 54400 HNDL Sewing Machine
Multiple needle chainstitch machine to produce continuous handles in a variety of widths & styles. Available with optional cutter and can be fully automated for unattended operation.
SK 68 BCHNDL Sewing Machine
Used for sewing mattress handles to the border in the second step of the handle operation. Available for horizontal or vertical handles.

S. Kaplan Sewing Machine Co., Inc.
11 Tichenor Lane, Newark, NJ 07114
GK0058-3 Tandem Needle Border Closing Machine
High speed true tandem needle machine for closing mattress borders in one pass. Two loopers and two needles positioned one directly in front of the other. Easily set up for use with FR thread. Economical replacement parts in stock.

Contact Info
SK Union Special 56300FTE Faux Tape Edge Sewing Machine
The SK- Union Special 56300FTE Faux Tape Edge Sewing Unit consists of a high speed chain stitch sewing machine head with synchronized puller for pucker free sewing. Sews with or without binding tape; faux seams pass flammability test.  Adjustable folder accommodates different width borders. Available as an economical manual sewing unit or fully automated with electronic needle positioning motor, stops for thread breakage and raw material depletion. Optional rewind unit.
SK GC20618 Mattress Zipper Sewing Station
The SK-GC20618 Mattress Zipper Sewing Station is  a heavy dusty double needle machine with built in puller for sewing single or double side zipper,  concealed  or exposed to mattress borders.  Available in virtually any configuration required.
Highlead GM288 High Speed, Overlock Sewing Machine
Available in three thread for serging, four thread (mock safety stitch) and five thread (safety stitch) models. 6.5mm presser foot lift, 4mm overlock stitch width, 7mm overall width for safety stitch.

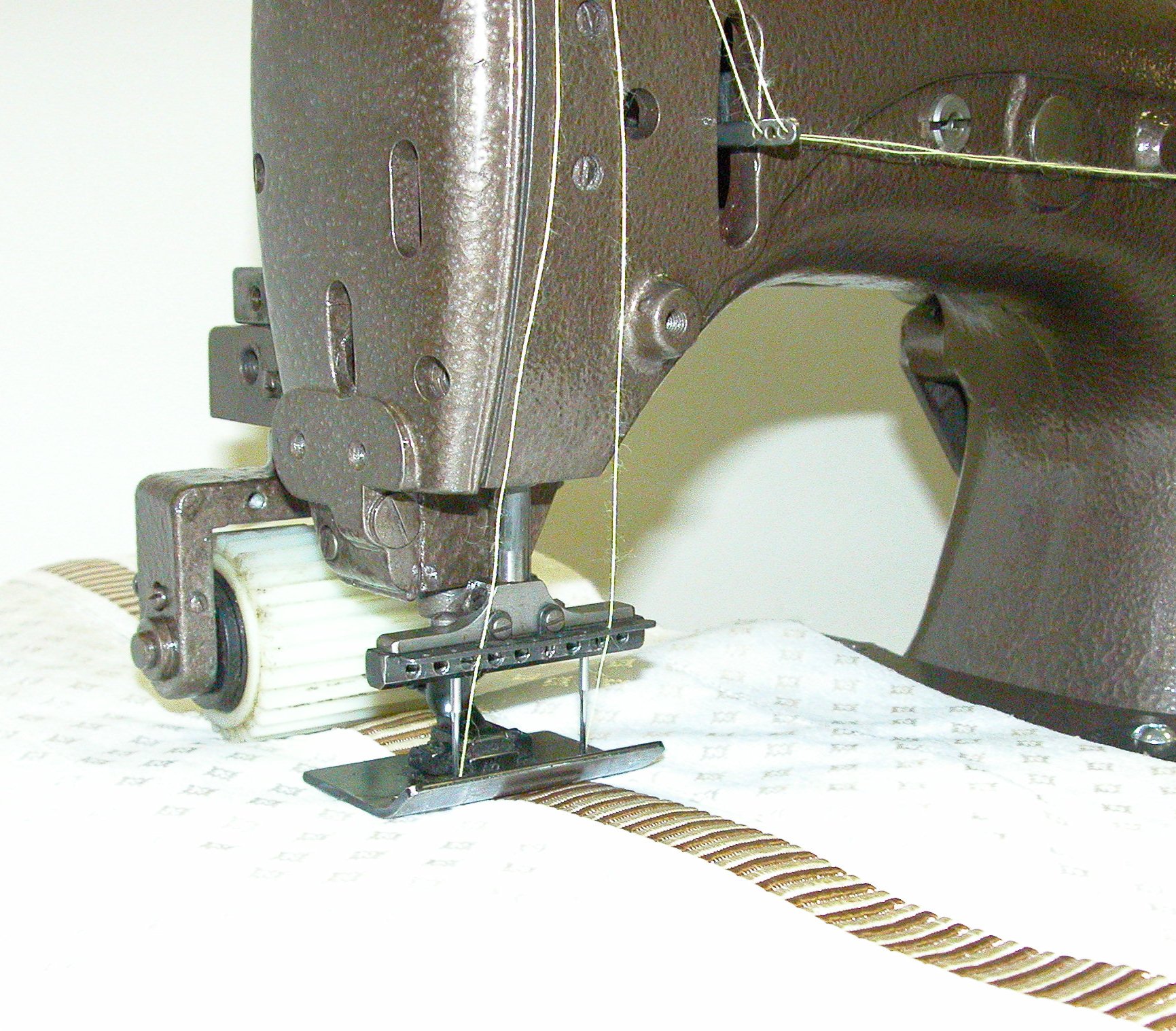

SK 54400BW Decorative Border Sewing Machine
Multiple needle high speed Union Special 54400 machine with synchronized puller alllows for different trim widths. Contrasting tape can be sewn to mattress border. Adjustable for different border widths. Available as a manual machine or fully automatic with auto stop for material depletion and thread break detectors.

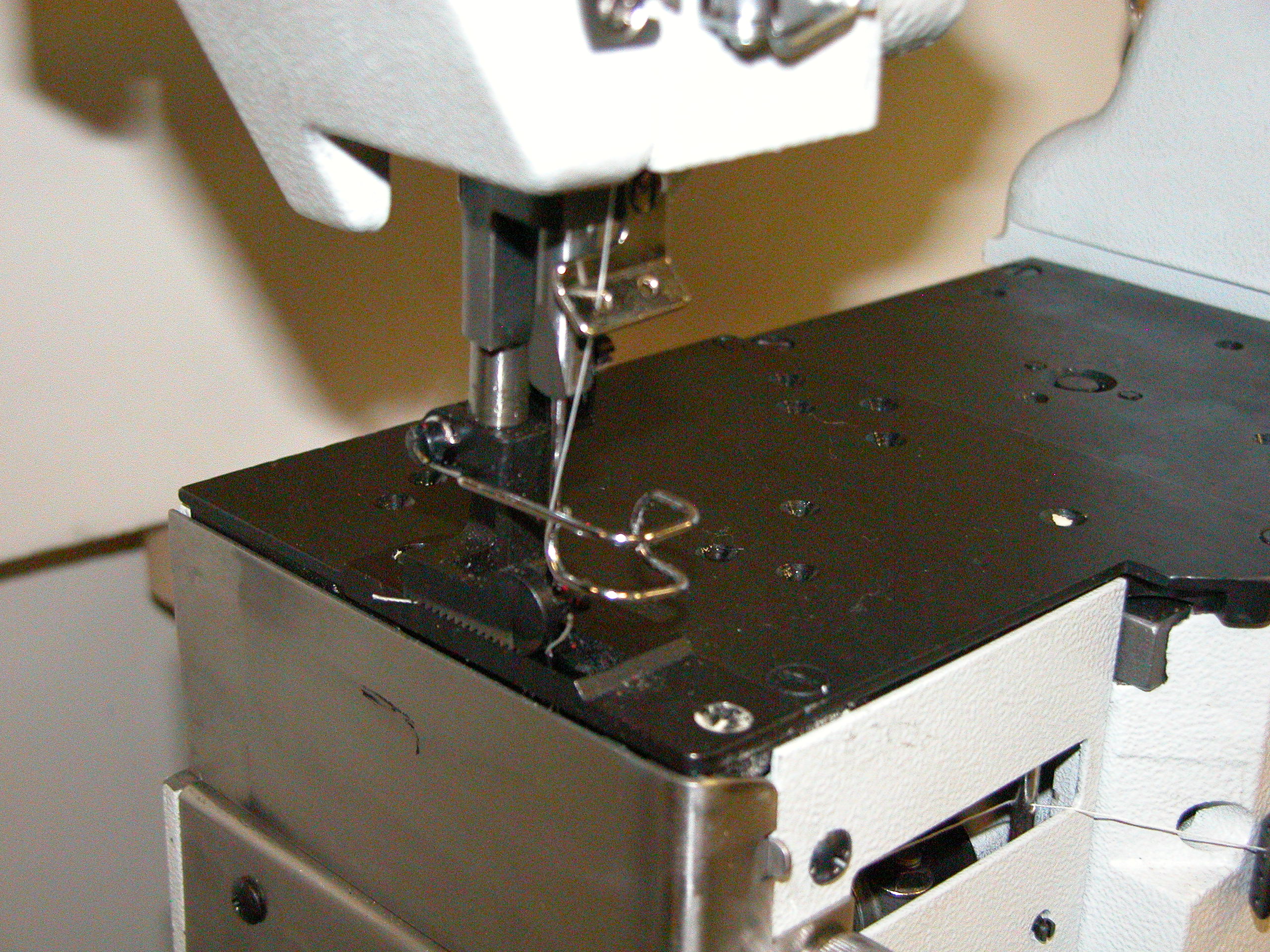

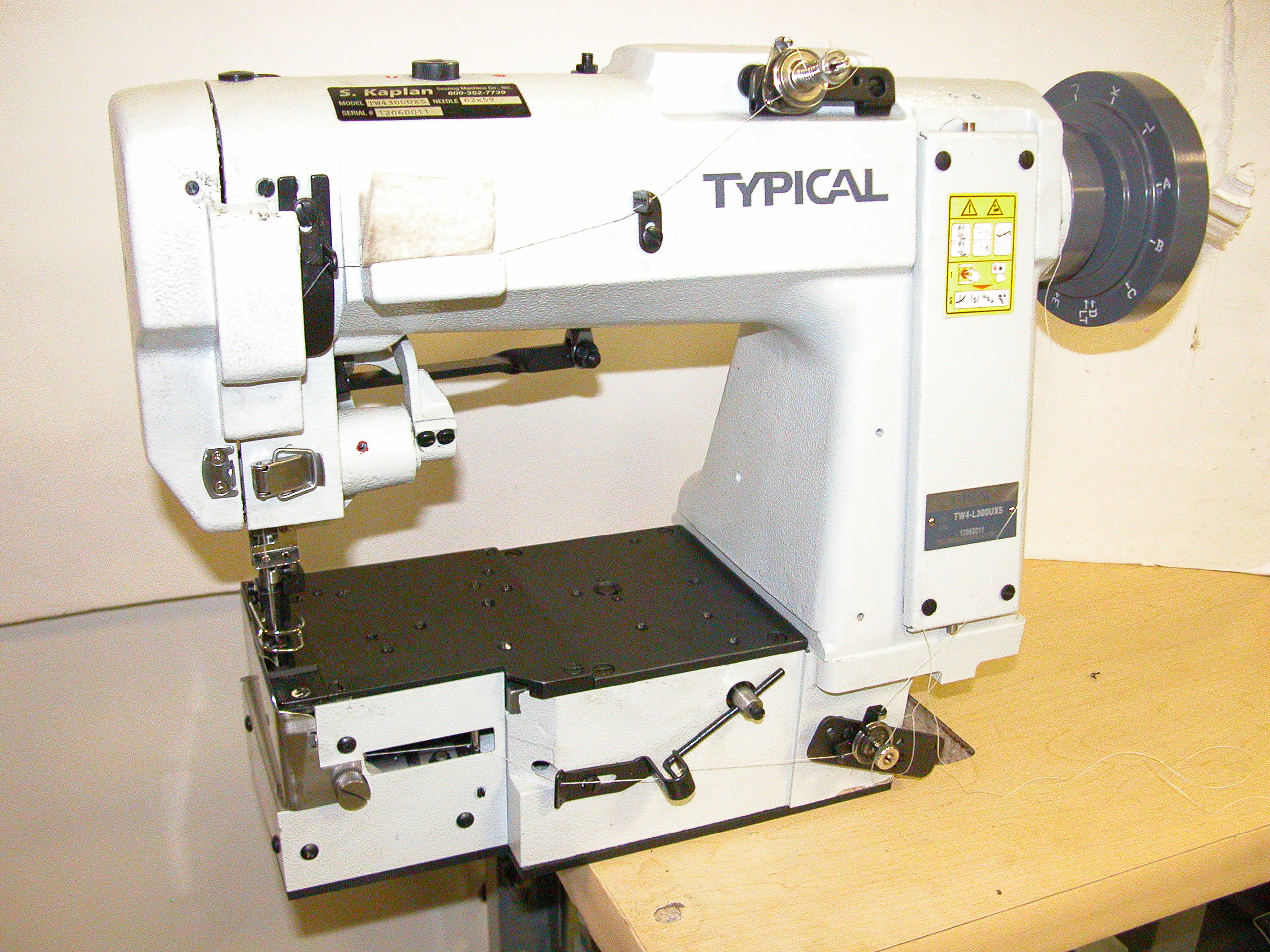

Typical Model TW3-L300UX5 Tape Edge Sewing Machine Head
Economical replacement Tape Edge sewing machine head for use as a spare or replacement upgrade. Can be mounted on most common machine carriages. Parts compatible with Singer 300UX type machine. Each machine will be sewn with your border, binding tape and thread.
